Mill Stand Installation: South Carolina

Barnhart was hired to install several components, including four 27' tall mill stands, weighing 250,000 pounds apiece and two gearboxes at a manufacturing plant in South Carolina. The site was still under construction and had a foundation that had different levels and variations. The crew set up 600-ton gantries and assembled 60' of gantry tracks to span the pits. The mill stands were loaded onto a hydraulic platform trailer and driven into the building at elevation between the gantries.

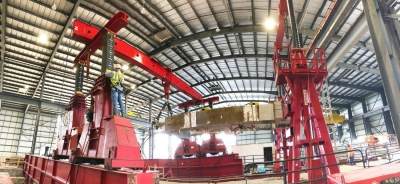

The mill stands were attached at the top to multipurpose girders and a 200-ton swivel to the outbound gantry and at the bottom to 500-ton inboard gantries.

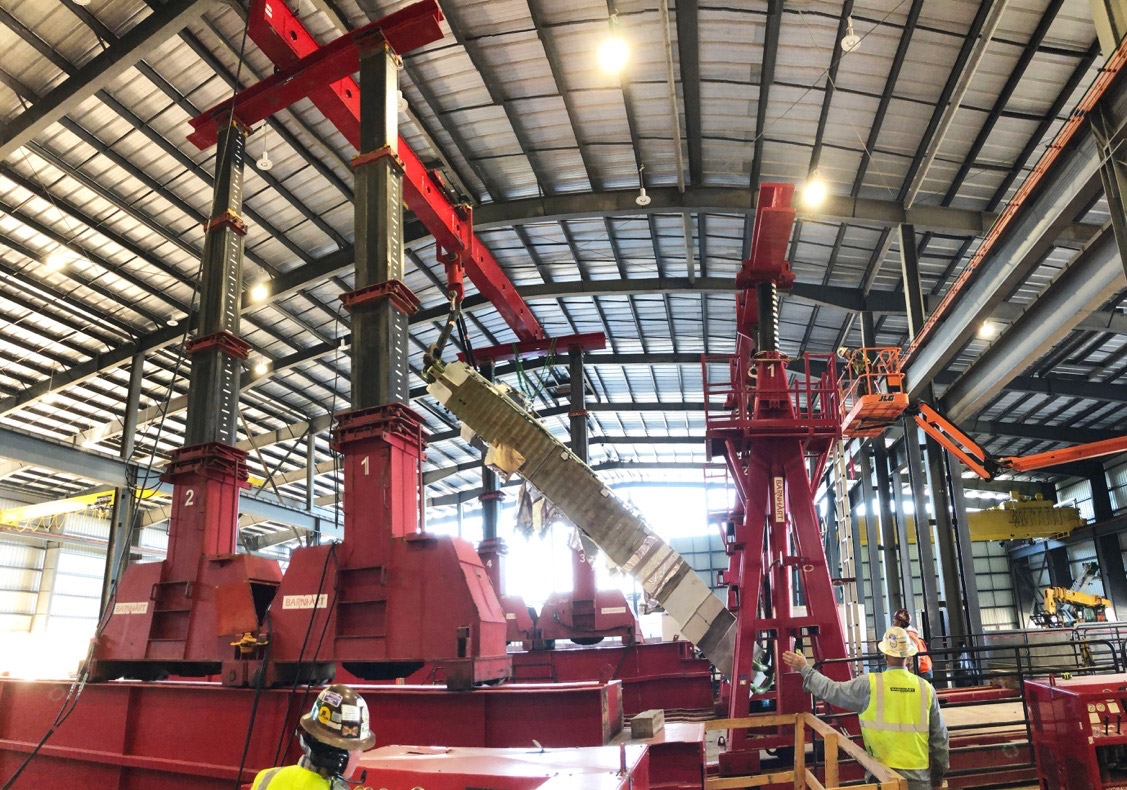

The mill stands were upended by retracting the in-board gantries and extending the outboard gantries.

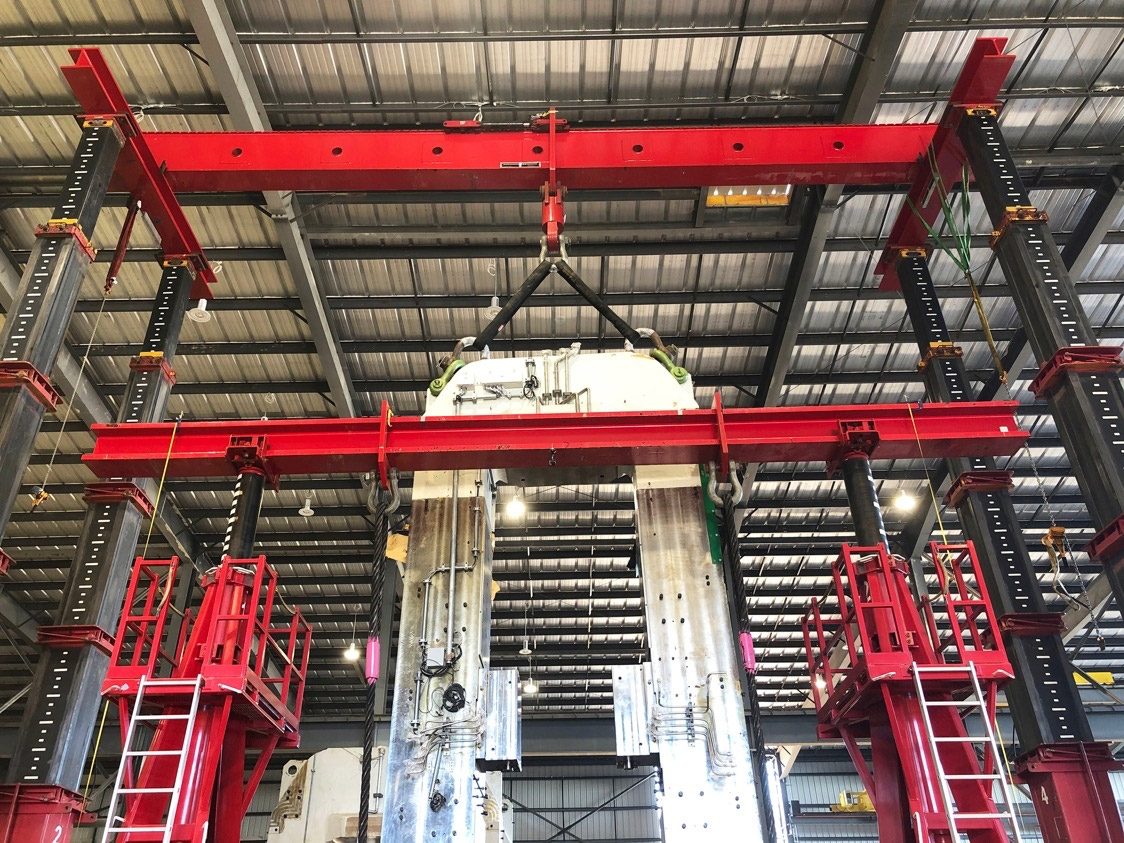

Once fully upended, the entirety of the load was supported on the outbound gantry system. The inboard gantries were retracted and the mill stand was set to anchor bolts.

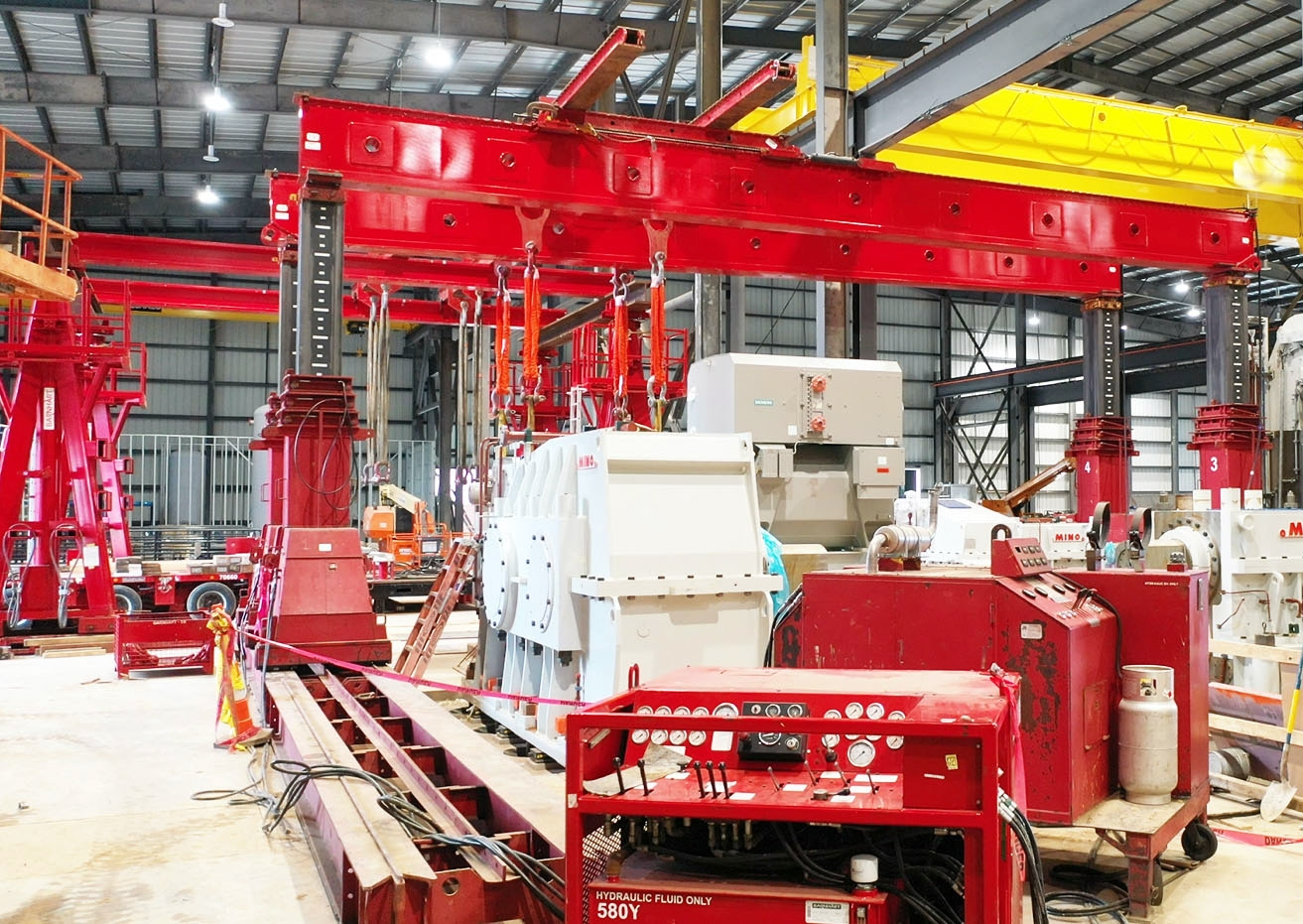

Barnhart also installed three gearboxes and two motors, which required breaking down the gantry system and reassembling it at another part of the plant. The components were placed onto a light slide system to be slid under the 600-ton gantries and moved into place.
